New
Omax

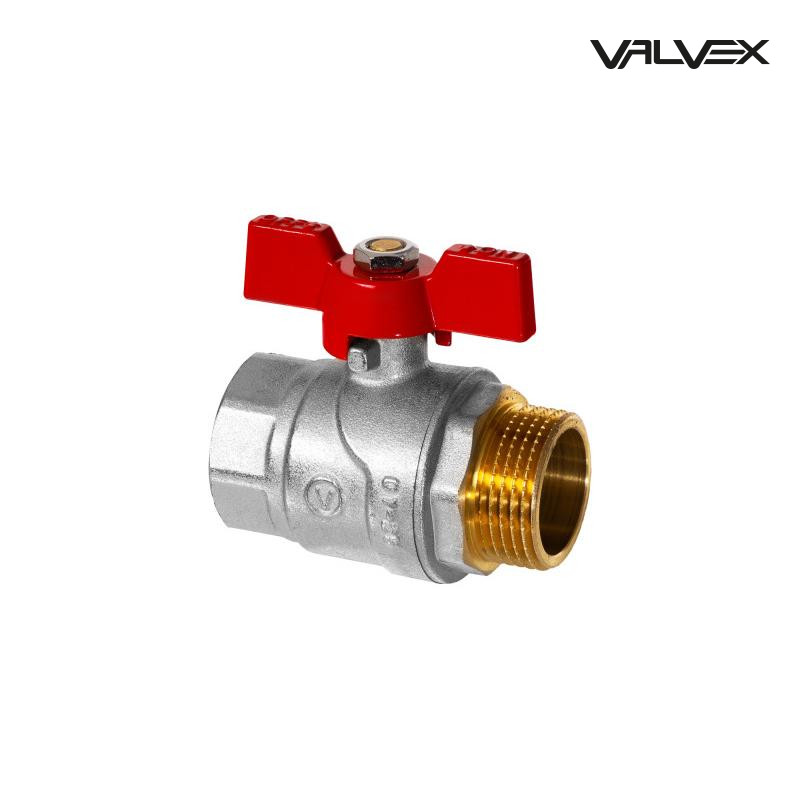

Ball valve with gland and aluminum butterfly handle, nut–male thread version

Product code
1402300, 1403300, 1404300
Dimensions
1/2", 3/4", 1"
Product line
Omax
Go to technical data

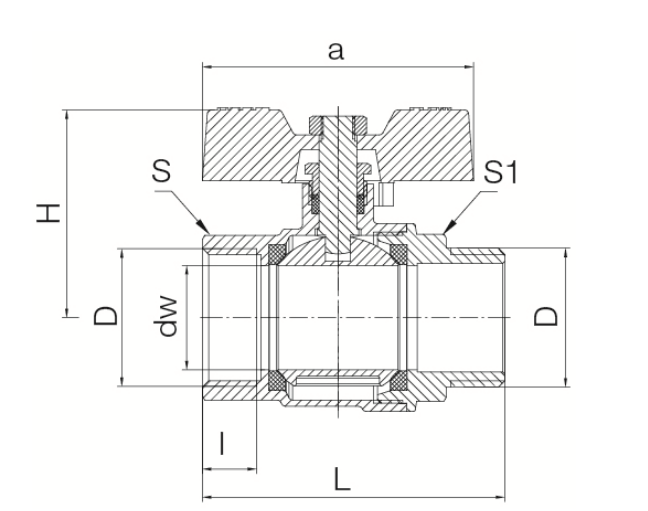

Technical data

1402300 1403300 1404300
Dimensions 1/2" 3/4" 1"
Operating parameters PN 30, 150°C PN 30, 150°C PN 30, 150°C
DN 15 20 25
Net weight 0,16 0,23 0,39
EAN 5902273572213 5902273572220 5902273572237

Download

Catalogue card
PDF
238.99 KB
Download
National Declaration of Performance (PL)
PDF
3571.82 KB
Download
Hygienic certificate (PL)
PDF
301.15 KB
Download
Instructions (PL)
PDF
582.76 KB
Download
