Onyx

Full-port ball valve with packing nut on stem and aluminium butterfly handle (female-female version)

Product code
1452400, 1453400, 1454400
Dimensions
1/2", 3/4", 1"
Product line
Onyx
Go to technical data

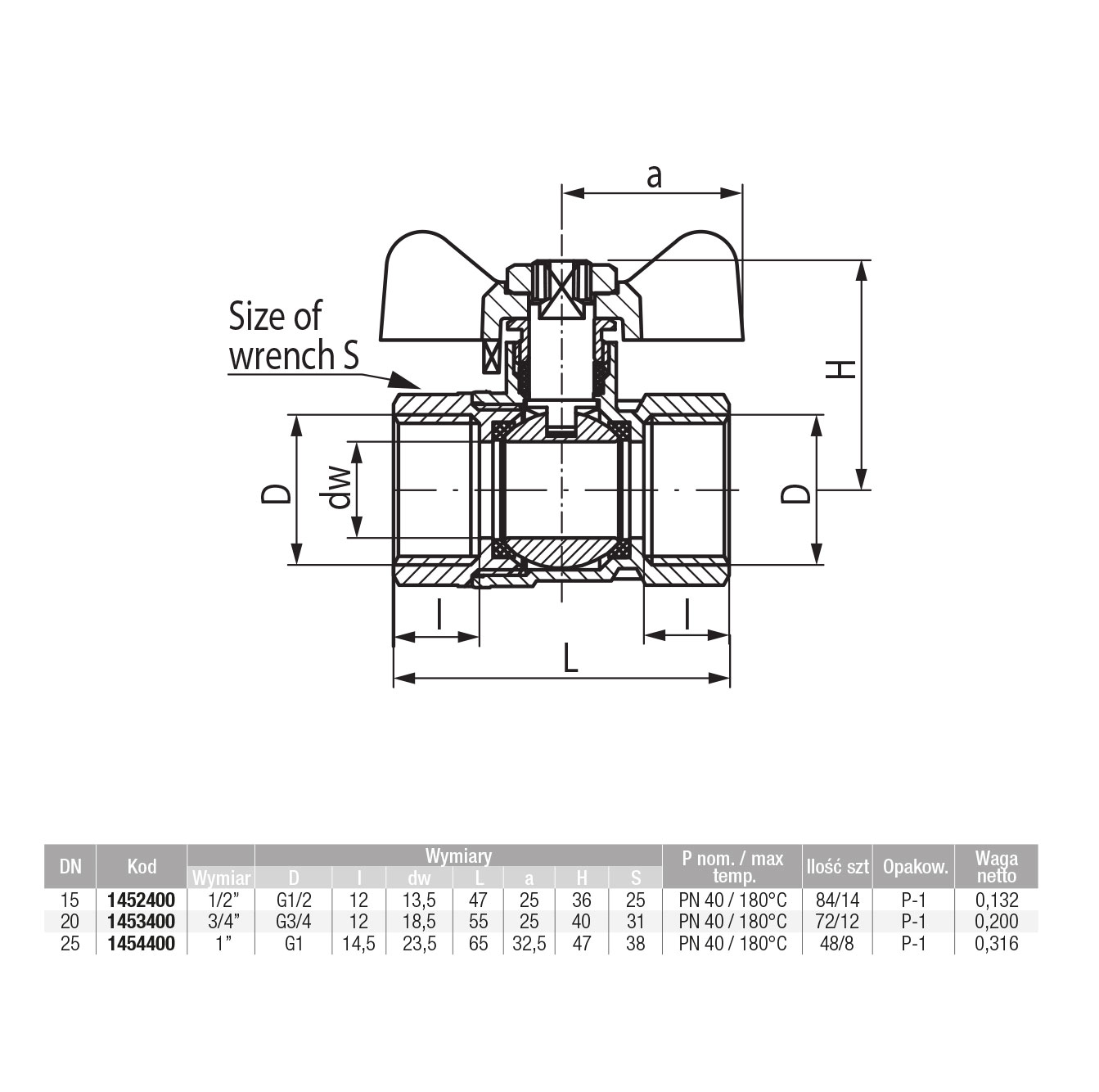

Technical data

1452400 1453400 1454400
Dimentions 1/2" 3/4" 1"
Work parameters PN 40, 180°C PN 40, 180°C PN 40, 180°C
Netto weight 0,132 0,2 0,316

Download

Catalogue card
PDF
76,94 KB
Download
Guarantee card
PDF
5328,87 KB
Download
National Declaration of Performance (PL)
PDF
2153,42 KB
Download
Hygienic certificate (PL)
PDF
301,15 KB
Download
Instructions
PDF
233,23 KB
Download
