New
Omax

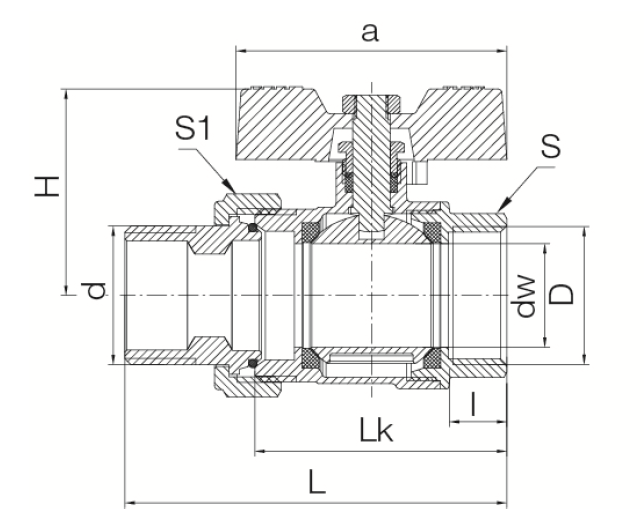

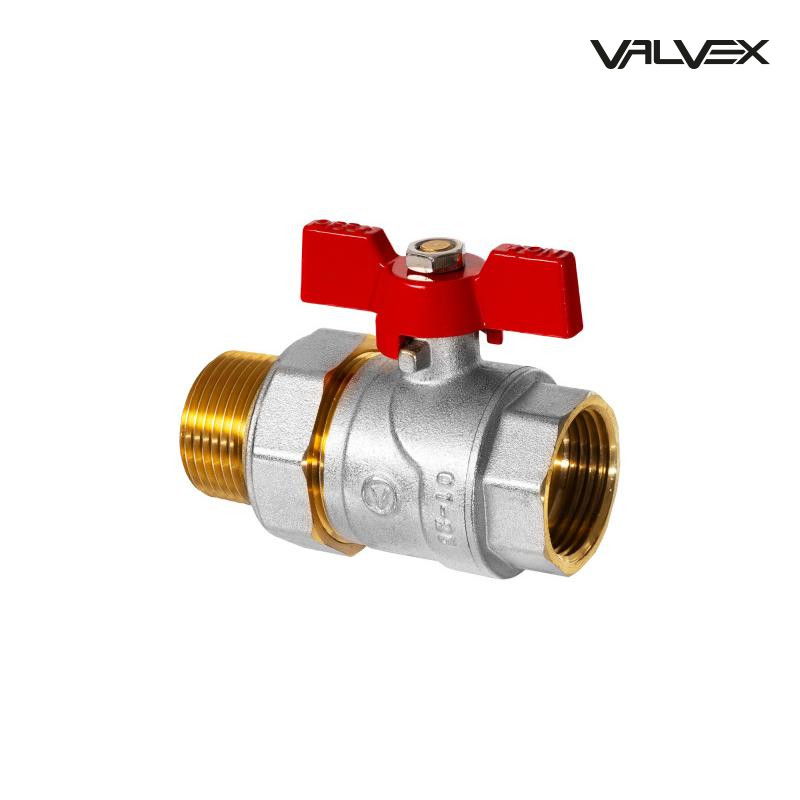

Ball valve with gland and half-union, equipped with an aluminum butterfly handle

Product code
1402260, 1403260, 1404260, 1405260
Dimensions
1/2", 3/4", 1", 1 1/4"
Product line
Omax
Go to technical data

Technical data


1402260 1403260 1404260 1405260
Dimensions 1/2" 3/4" 1" 1 1/4"
Operating parameters PN 30, 150°C PN 30, 150°C PN 30, 150°C PN 30, 150°C
DN 15 20 25 32
Net weight 0,19 0,29 0,52 0,42
EAN code 5902273572121 5902273572138 5902273572145 5902273572251

Download

Catalogue card
PDF
266.84 KB
Download
National Declaration of Performance (PL)
PDF
3571.82 KB
Download
Hygienic certificate (PL)
PDF
301.15 KB
Download
Instructions (PL)
PDF
582.76 KB
Download
